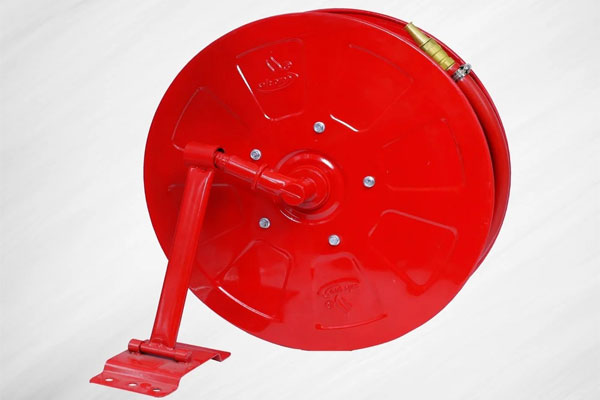

Conforms to IS: 884/1958, 1″ threaded inlet, 180° wall mounting.
Outlets
3/4″, 1″, 1-1/2″ for hoses up to 30/36/40 meters.
Performance
Hydraulic test at 21 kgf/cm², 24 LPM discharge, 6m jet range at 7 kgf/cm².
Materials
M.S. Sheet (IS: 513), steel (IS: 1239 Part 1), nozzle (IS: 8090), thermoplastic hose (IS: 12585), rubber hose (IS: 444).
